The hot side is where most brewers spend their first serious money. Here is what the upgrade actually buys you, and which tier is worth paying for.

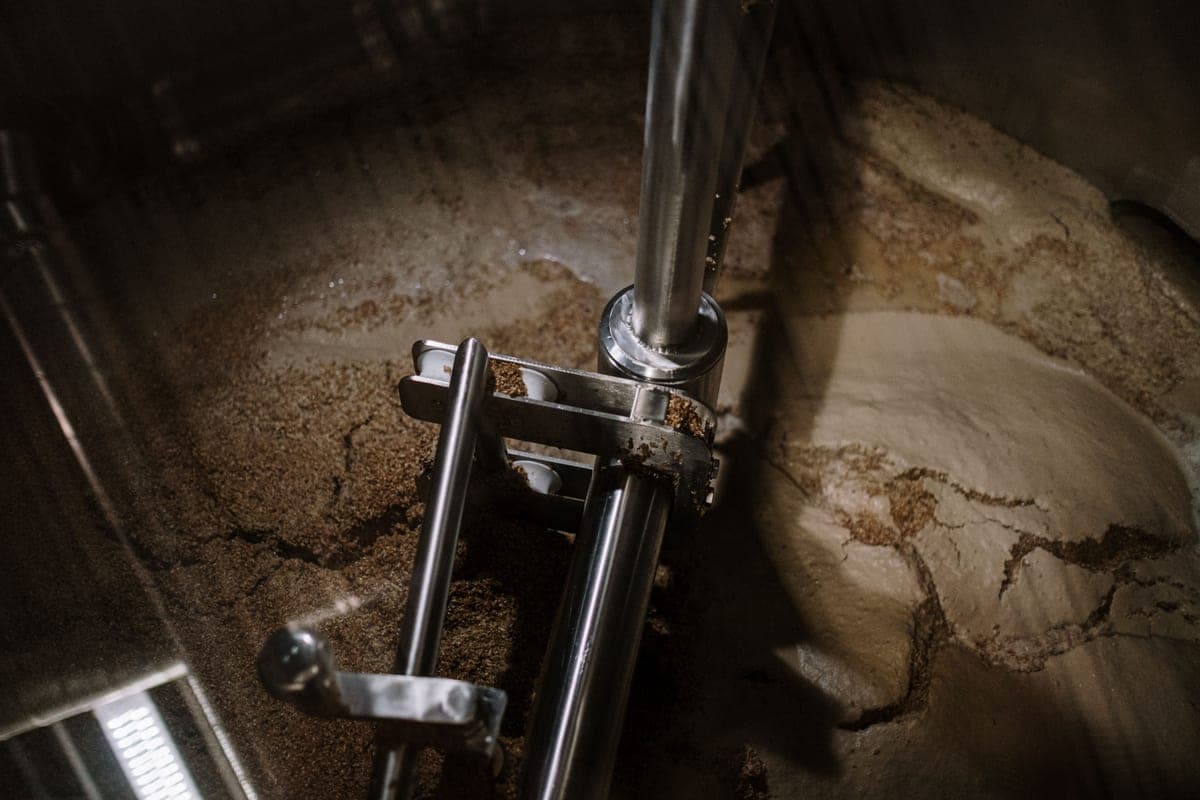

Electric all-in-one brewing system with a digital controller

Nearly every homebrewer who sticks with the hobby arrives at the same decision: the stovetop extract brew day has stopped being the fun part. The pot is too small for a full boil, the kitchen is too hot, and you want to control the mash rather than trust a can of malt extract. A single-vessel electric brewing system is the answer most brewers reach for, and it is a genuinely large jump in both capability and cost.

What you are buying is not primarily better beer. It is repeatability and reclaimed attention. An all-in-one system holds mash temperature to within a degree without you standing over it, recirculates wort so the grain bed clarifies itself, and brings a full 6 to 7 gallon boil to a rolling break on a kitchen circuit. The brew day goes from improvised to scheduled. That is the real upgrade, and it is why brewers who make the jump rarely go back.

The three tiers, and who each one is actually for

Published capacity is the spec everyone quotes and the one that misleads most. A “35 liter” system does not make 35 liters of beer; it makes roughly 23 to 30 liters into the fermenter once you account for grain absorption, boil-off and the dead space under the false bottom. Buy for finished volume, not vessel volume, and buy one size up from the batch you make today.

  • Entry (budget single vessel). Generic and house-brand electric kettles with a grain basket. They heat, they mash, they boil. What you give up is pump quality, controller resolution and long-term parts availability. Viable if you want to find out whether all-grain suits you before committing.
  • Mid (the mainstream). The Anvil Foundry, BrewZilla and Grainfather G30 class. Real step-mash control, a usable pump, dual-voltage options and an aftermarket that will still sell you a gasket in five years. This is where most brewers should land, and where the comparison pages on this site spend most of their time.
  • Prosumer. Welded 240V rigs and the larger Grainfather units. You are paying for throughput, element power and fittings you can rebuild rather than replace. Worth it if you brew 10-gallon batches or brew often enough that an hour saved per brew day compounds.

Voltage is the constraint people discover too late

A 120V 1600W element will heat 7 gallons of strike water, but slowly, and it will struggle to hold a vigorous boil on a bigger batch. Systems that switch between 120V and 240V (the Anvil Foundry does this with a patented dual-voltage heater) let you start on a kitchen outlet and move to a dryer circuit later. If you have no realistic path to a 240V outlet, size down rather than buying a system that will disappoint you at full volume. This is the single most common sizing regret we see discussed in brewing communities, and it is entirely avoidable at purchase time.

Sizes inside one family trip people up for the same reason. The two Foundry vessels share an element and a controller, so the decision is batch size and heat-up speed rather than quality -- Anvil Foundry 6.5 vs 10.5 works through which one brews the batches you actually brew.

What the hot side does not fix

A better brewing system improves consistency on brew day. It does nothing for the 10 to 14 days afterwards, which is where most detectable off-flavors are actually created. If your beer tastes solventy, or your esters swing batch to batch, the problem is almost certainly fermentation temperature rather than your mash. Brewers who spend their whole budget on the hot side and keep fermenting in a closet are optimizing the wrong half of the process -- that is the argument the upgrade path page lays out in order, and why temperature control is usually the cheaper win.

If you are still on extract and weighing whether the mash is worth the trouble, start with all-grain vs extract. If you have decided and want the equipment list before you shop, the all-grain equipment list is the honest version -- including the things you do not need yet.

Added recently in this hub: our comparison of the best 240V electric brewing systems for brewers with a dedicated circuit, a head-to-head on Grainfather G30 vs G40 for anyone choosing a size, and the process guide on how to improve mash efficiency, which is where a system that already works gets better.

Roundups

What to buy

Comparisons

Head to head

Compact electric brewing system in a home kitchen

Comparison

Grainfather G30 vs G40

The 30 L and 40 L Grainfather systems compared on finished batch size, grain capacity, included kit and footprint.

Compact electric all-in-one brewing system on a worktop

Comparison

Anvil Foundry 6.5 vs 10.5

The two Foundry sizes compared on batch size, heat-up speed, grain capacity and what is in the box.

Reviews

Single-product reviews

Guides

How it works

Sacks of malted barley in storage

Guide

How to Improve Mash Efficiency

Crush gap, mash pH, water to grist ratio and sparge rate -- what actually moves mash efficiency, in priority order.

FAQ

Brewing Systems: common questions

Is an all-in-one electric system better than a three-vessel setup?

Not better, different. An all-in-one trades flexibility for footprint and convenience: one vessel, one element, one controller, and no propane. A three-vessel rig gives you true fly sparging, faster back-to-back brewing and independent temperature control of each vessel. For a brewer making one 5 to 6 gallon batch at a time in a garage or kitchen, the all-in-one wins on every practical measure except peak throughput.

What size all-in-one system should I buy?

Buy for finished volume, not vessel volume, and size one step above the batch you brew now. A 35 to 40 liter vessel comfortably makes a 23 liter (6 gallon) batch with room for a strong boil; pushing the same vessel to its nominal capacity means boilovers and a mash that fills the basket. If you ever want to brew a high-gravity beer, that headroom is what makes it possible.

Do I need 240V to brew all-grain electrically?

No, but it changes the experience. A 120V 1600W element will heat and boil a 5 to 6 gallon batch; it just takes longer to reach a boil and holds a gentler one. For 10 gallon batches 240V stops being optional. Dual-voltage systems let you start on a standard outlet and switch later, which is the lower-risk path if your electrical situation might change.

Will a better brewing system make my beer taste better?

It will make it more consistent, which over time usually means better. It will not fix a fermentation problem. If your current beers have detectable off-flavors rather than batch-to-batch variation, temperature control during fermentation is the cheaper and more effective purchase.

Not sure where to start

The upgrade path puts this in order

Which upgrade is worth making next depends on what you already own. Our signature guide sequences the whole setup by return per dollar.
